Boring Tool Component Selector - Expert System



Too Many Combinations

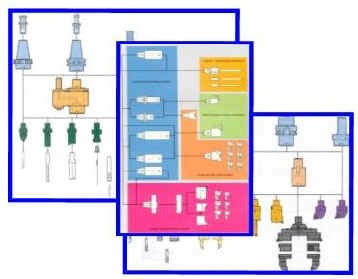

One of our clients offers a boring bar product line with many possible combinations to do the job.  In fact, there are too many combinations for the average person to choose from!

Our "Expert System" provides a way to choose the best combination!



1. Select the boring head type

 Click on the radio button for "Finishing" or "Roughing".  (The default is roughing.)

Finishing

Roughing



2. Select the flange type and taper size

Click on the radio button for "V Taper" or "BT Taper" and then choose the appropriate taper size.  (The default is 50 V Taper.)

V Taper

BT Taper

40

30

45

40

50

50



3. Enter hole dimensions

Click on the button "Select Hole Dimensions" to get going.



Reset if necessary

Click on the "Reset" button to clear the selections and start over.
